Fabrication Services

Build Stronger Spaces with Quality Aluminium

In addition to providing custom aluminium solutions, our company offers comprehensive aluminium fabrication and assembly services tailored to your needs. Our capabilities include, but are not limited to, the following.

Fabrication Capabilities

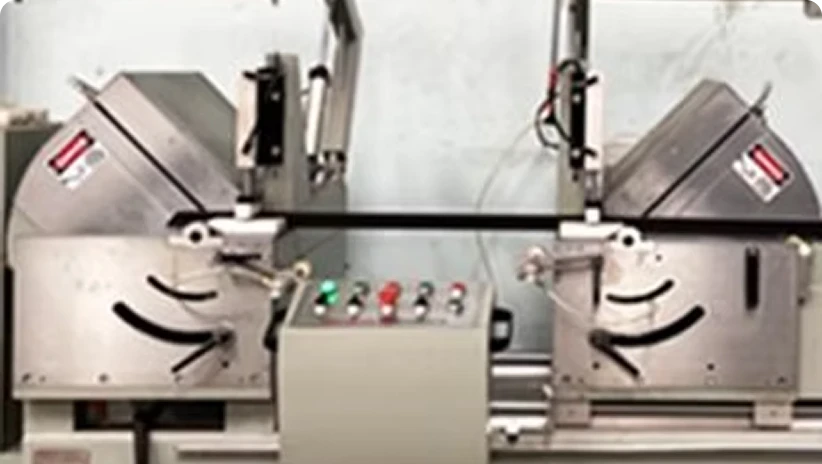

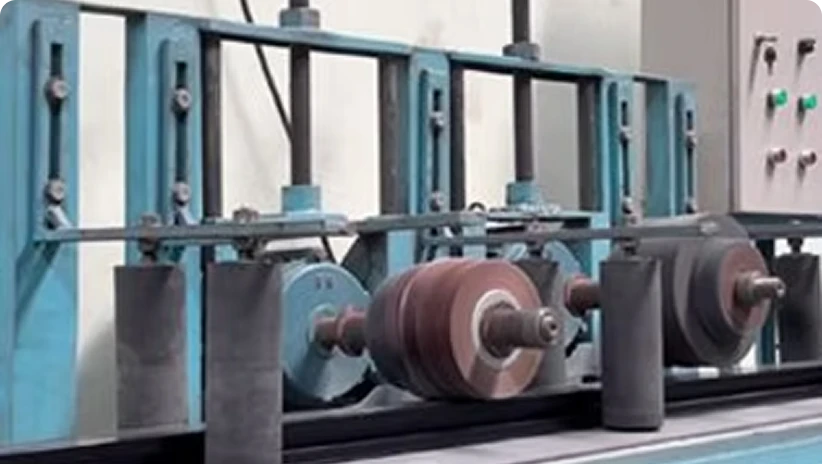

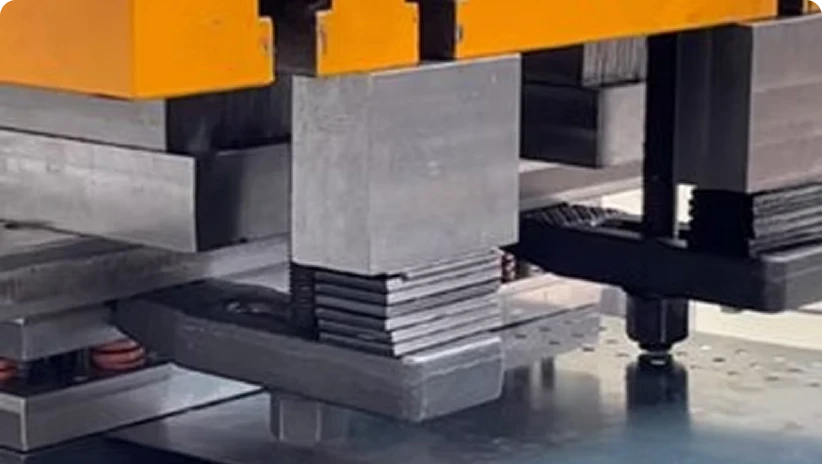

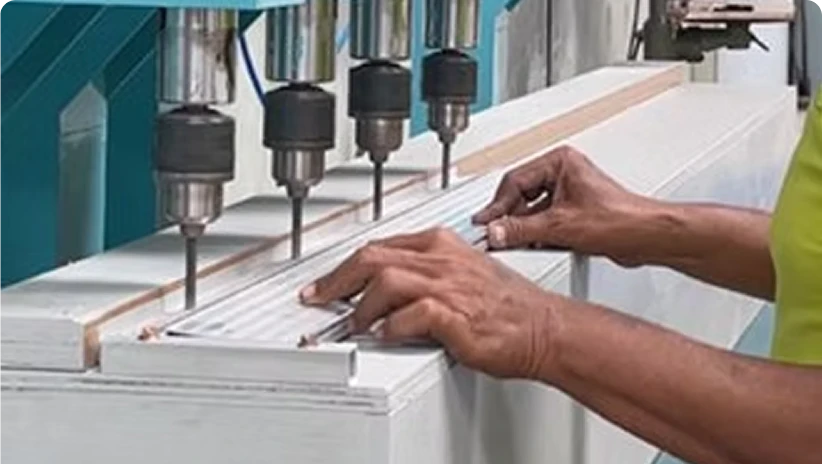

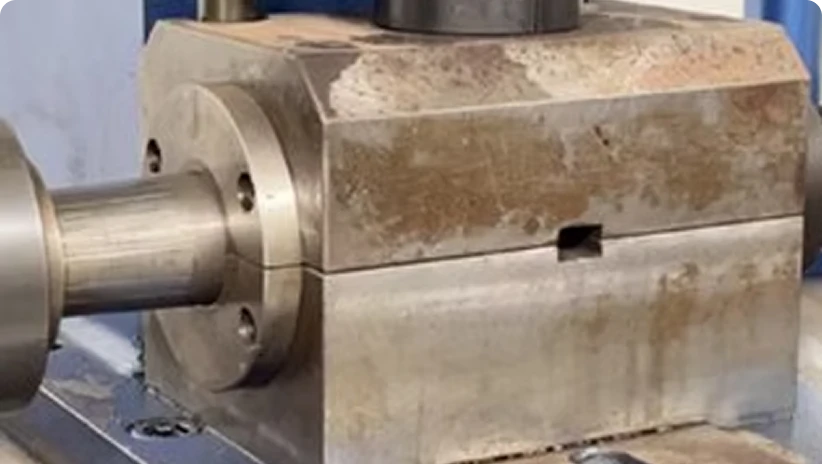

Exalum Metal utilizes precision cutting saws for extrusion processes to perform cutback operations, followed by thorough deburring. Our equipment includes advanced brake presses capable of punching, notching, and closing operations to create custom features tailored to specific requirements. Additionally, we operate drilling and tapping machines to support seamless integration and secure fastening of components.

CNC Precision Cutting

Advanced CNC cutting technology enables precise, consistent,
and efficient fabrication for a wide range of aluminium profiles and components.

Finishing Capabilities

Exalum Metal has a wide variety of superior in-house finishing capabilities as well as trusted partners, ensuring the finished extrusions meet your specifications and bring your ideas to life.

Anodizing

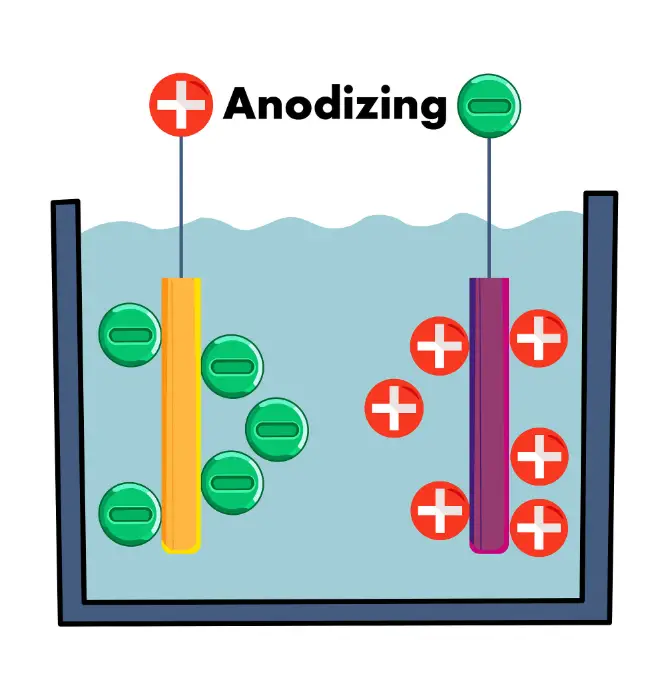

How the Anodizing Electrochemical Cell Works

As shown in the diagram above, anodizing relies on basic electrolysis principles:

Anode (+): The aluminum part is connected to the positive terminal of a Direct Current (DC) power supply.
Cathode (-): Lead, copper, or stainless steel plates are connected to the negative terminal.
Electrolyte Solution: The components are submerged in an acid bath (typically sulfuric acid, H2SO4).
Electrochemical Reaction: When DC current flows through the circuit, hydrogen is released at the cathode, while oxygen ions are drawn to the aluminum anode, reacting to form a controlled layer of aluminum oxide (Al2O3). 4Al+3O2⟶2Al2O3

Anodizing Process

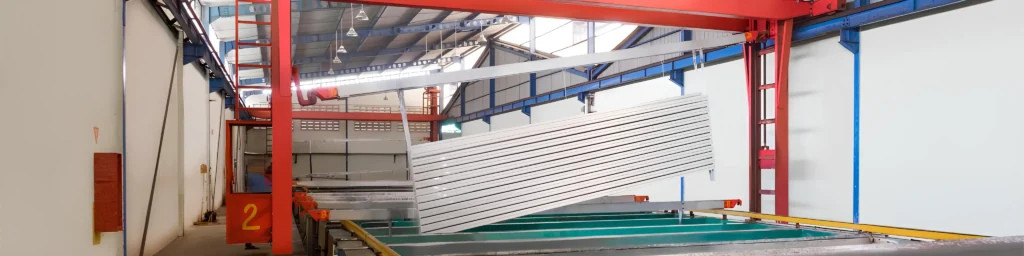

Step-by-Step Anodizing Process

Cleaning & Degreasing:
Surface Preparation.
The aluminum profile is thoroughly cleaned using alkaline or acid degreasers to remove oil, grease, dirt, and shop dust, ensuring an even electrochemical reaction.
Etching / Desmutting:
Pre-treatment.
The metal is immersed in a mild chemical solution to remove natural oxides and smooth out minor surface scratches, producing a uniform matte appearance.
Anodizing (Anodic Oxidation):
Electrochemical Reaction.
Submerged in the acidic electrolyte tank, direct electric current drives oxygen ions into the aluminum, creating a durable, porous oxide layer.
Coloring / Dyeing:
Optional Finishing.
The microscopic pores created during anodizing can absorb organic dyes or metallic salts to achieve permanent colors such as black, bronze, gold, or red.
Sealing:
Final Protection.
The aluminum is treated in boiling deionized water or a nickel acetate solution. This hydrates the oxide layer, closing the pores to lock in colors and maximize corrosion and wear resistance.

Key Advantages of Anodizing

Durability: The coating is integrated with the underlying aluminum substrate and will not chip, peel, or flake like traditional paint.
Corrosion Resistance: Protects the metal against moisture, UV light, salt spray, and atmospheric oxidation.
Aesthetics: Provides a sleek metallic finish that can be colored or left in its natural metallic tone.

Anodizing Color

Premium Anodized Aluminium Finishes

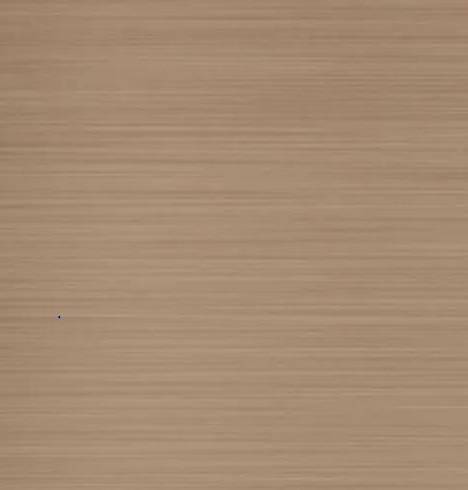

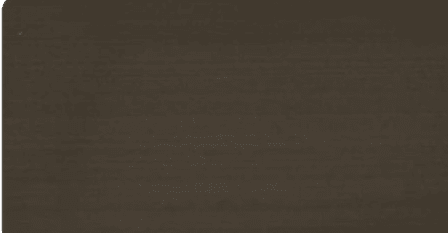

Discover durable anodizing finishes for aluminium with elegant color selections including Clear Anodizing, Champagne, Bronze, Dark Brown, and Black. Designed to provide enhanced corrosion resistance, long-lasting color consistency, and a refined architectural appearance.

Powder Coating Process

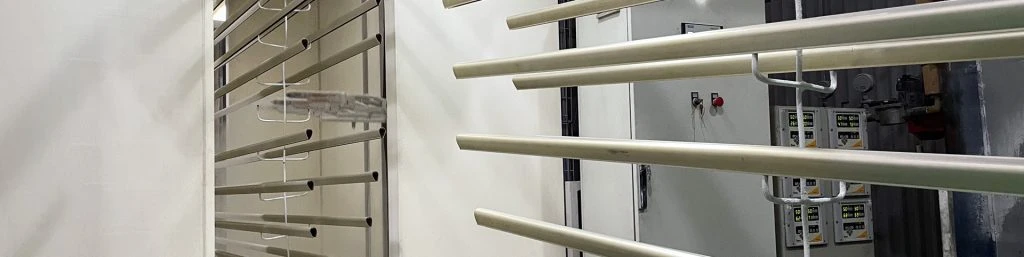

Step-by-Step Powder Coating Process

Pre-processing on shelves Before production and framing, the appearance quality of the profiles mube carefully checked.
Spraying and Racking – Clean gloves and sleeves should be worm when putting on shelves(in summer). – Ensure the rack s have good electrical conductivity,clean and repair the rack in time and use appropriate rack when putting on the shelves to ensure product production quality. – Carefully check the suface quality of the profiles and pick out unqualified profiles. – Reworked materials and profiles with special requirements should be treated specially.

Skin Surface tone Proses Parameters

No	Material	Control Items	Control Parameter	Remark
1	YBL-Chrome-free agent oiling agnet	Konsentrasi	> 25g/L	Suhu Normal
2	YBL-Chrome-free agent oiling agnet	Ion Aluminium	<4.5g/L
3	YBL-Chrome-free agent oiling agnet	Jumlah Silan	> 0.5 g /L
4	YBL-Chrome-free agent oiling agnet	Waktu Proses	5-10 menit

Blowing dust before spraying – Wear clean gloves,first blow and then wipe from top to bottom. Be sure to remove dust,oil and residual moisture on the surface of the profile. – Check whether the profiles are hung well and stably. and whether the hanging angle is the same direction,be consisten.
Degreasing and Rinsing
Start the profiles during the water washing process so that the bath liquid remaining in the workplace is washed away by water.
Dry off the liquid about 1-3 minutes.
Powder Spraying Check all the equipment in the spraying process is opperating normally, and whether the fluidazation barrel, powder pipe, spray gun, recovery system and powder room are clean.
Curring Oven Temperature: Heated to 180°C – 200°C (356°F – 392°F).
Time: Baked for 10 to 20 minutes (depending on the aluminum’s thickness and the specific powder formulation).
Cross-Linking: Inside the oven, the powder melts, flows into a smooth liquid layer, and undergoes a chemical cross-linking reaction to permanently bond and harden into a solid protective shell.
Cooling & Quality Control Film Thickness Check: Typically targeted at 60–80 microns.
Adhesion Test: Cross-hatch tape test to verify mechanical bond strength.
Visual Inspection: Checking for surface defects like orange peel, pinholes, color consistency, and gloss level.

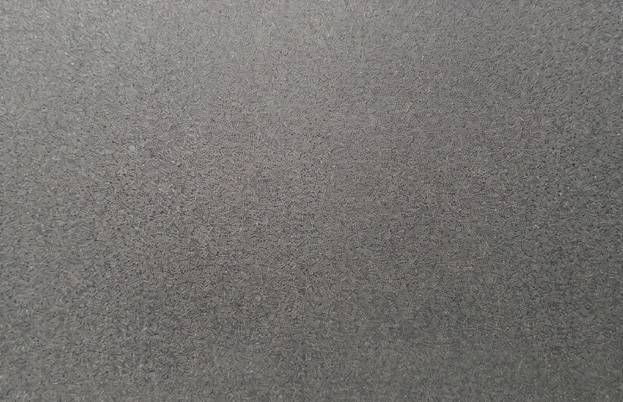

Powder Coat

Premium Powder Coating Finishes for Aluminium

Explore a range of durable powder coating color options designed for modern aluminium applications. Delivering long-lasting protection, consistent color quality, and a refined finish for architectural and industrial projects.
