If you’ve walked through a modern factory, R&D lab, or automation cell in the last decade, you’ve seen T slot aluminum doing structural work that used to require welded steel. Machine guards, conveyor frames, robotic cells, test fixtures, ergonomic workstations, and entire assembly lines now run on extruded T slot profiles. The reason is simple: it’s faster to design, faster to build, easier to modify, and almost always cheaper across the project lifecycle.
For workshop owners, automation engineers, and fabrication shops, here’s what you actually need to know before specifying T slot aluminum.
What Is T Slot Aluminum?

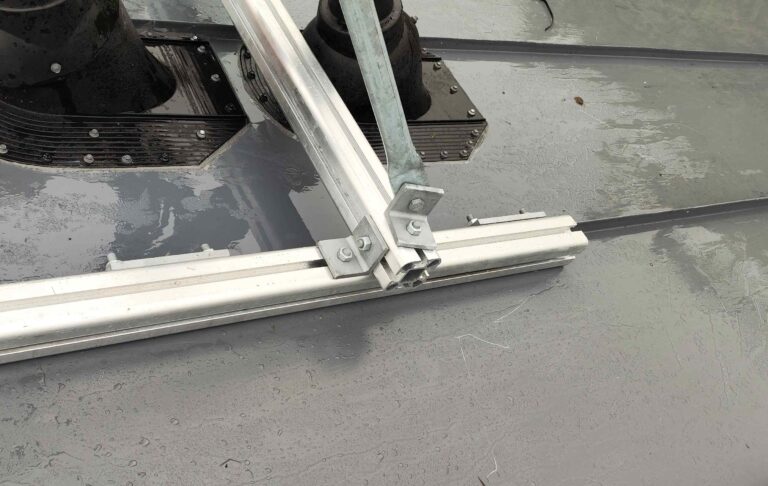

T slot aluminum is an extruded structural profile with continuous T-shaped slots running the full length of every face. The slots accept specialized fasteners (T-nuts, hammer-head bolts, drop-in connectors) that lock anywhere along the profile without drilling, tapping, or welding.
The result is a modular framing system that assembles like industrial-grade construction blocks. A frame can be built, reconfigured, extended, or completely repurposed using the same components, with no permanent modifications to the original profiles.
Why T Slot Replaced Welded Steel in Most Shops
Three operational advantages drove the shift:
- Build speed. A typical T slot frame goes from CAD to assembled structure in hours, not days. No welding, no grinding, no painting.
- Reconfigurability. When the production line changes, the frame adapts. Cut, re-bolt, reposition. No scrap, no rework.
- Clean appearance. T slot aluminum arrives anodized or mill finish, with no welds to grind or paint. The finished frame looks engineered, not improvised.
Add aluminum’s corrosion resistance, light weight (about a third of equivalent steel), and full recyclability, and the cost case usually closes itself within the first project.
Standard T Slot Sizes and Series
T slot aluminum is organized into series defined by profile cross-section, slot width, and load capacity:
20 series (20mm x 20mm): Light-duty work like small enclosures, sensor mounts, and benchtop fixtures.
30 series (30mm x 30mm): The most versatile size for machine guards, test rigs, and light automation.
40 series (40mm x 40mm): The workshop standard for robotic cells, conveyor frames, and structural workstations.
45 series (45mm x 45mm): European-style heavy-duty applications, common in industrial automation.
60 and 80 series: Heavy structural framing for large machines, gantries, and load-bearing assemblies.
Within each series, profiles come in single, double, triple, and corner configurations to handle different load and geometry requirements. Matching the series to the actual load case is the first decision worth getting right.
Alloy and Temper for T Slot Aluminum
Almost all T slot aluminum extrusion runs in 6063-T5 or 6105-T5.
6063-T5 is the global standard, valued for clean extrusion of complex T slot geometry, excellent anodizing response, and adequate strength for most framing applications.
6105-T5 offers higher mechanical strength while extruding nearly as cleanly as 6063, making it the preferred upgrade for heavier load applications without moving to a larger profile size.
For most workshop framing work, 6063-T5 is the right call. For load-bearing or vibration-intensive automation, 6105-T5 buys you safety margin without a profile upsizing.
Real Applications in the Workshop
T slot aluminum dominates a wide range of shop and industrial work:
- Machine safety guards and perimeter enclosures
- Robotic work cells and automation frames
- Conveyor support structures
- Test and inspection fixtures
- Quality control and gauging stations
- Adjustable workbenches and ergonomic workstations
- CNC machine enclosures and chip guards
- Trade show booth structures and modular displays
- 3D printer frames and prototype rigs
The same set of profiles, connectors, and panels handles all of it. That’s the structural payoff of standardizing on a single T slot system across the shop.
What to Spec When Ordering T Slot Aluminum
Three details to lock down before the order:
- Series and profile shape matched to the actual load and geometry of the assembly
- Cut length tolerance, typically ±0.5mm for assembled frames where slot alignment matters
- Finish, with anodized clear (most common), anodized black, or mill finish as the standard options
For high-volume or repeat work, ordering custom-cut lengths with tapped end-faces or machined slots eliminates downstream prep and accelerates assembly.
Sourcing T Slot Aluminum for Your Fabrication Needs
T slot aluminum lives or dies on extrusion accuracy. A profile that’s even half a millimeter out of tolerance creates misaligned slots, hard-to-seat fasteners, and frames that don’t square up. The only reliable way to protect that accuracy is to work with a manufacturer who controls billet quality, die maintenance, and finishing under one roof.
